Tesla Model X Wheel Guide

Everything you need to know about your Tesla Model X Wheels.

2016-2020

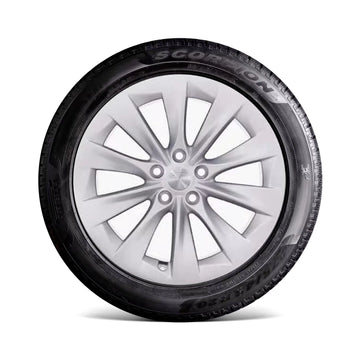

20" Tesla Model X Slipstream Wheel

This was the wheel originally included as standard on all 2016 - 2020 Tesla Model X. The Tesla Model X Slipstream Wheel was only available in a silver or a Sonic Carbon color.

Size: 20x9.0" Front, 20x10" Rear (Note: Tesla later changed rear wheel to 20x9.5"+35)Offset: +35
PCD: 5x120
Center Bore: 64.1mm
Weight: 32 lbs Front, 33.2 lbs Rear
Lug Nut Spec: 21mm Hex, 14x1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:No Charge for Silver or $4,300 for Sonic CarbonTire Spec: Continental CrossContact LX Sport - 265/45R20 108V XL Front, 275/45ZR20 110V XL Rear (Overall Diameter: 29.4" Front, 29.7" Rear / Revolutions Per Mile: 707 Front, 698 Rear)

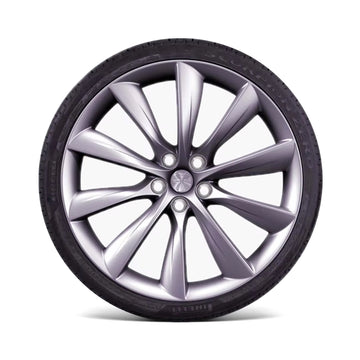

22" Tesla Model X Turbine Wheel

The Turbine Wheel was the an optional wheel upgrade for the Model X. The Model X Turbine Wheel was the first iteration of the Turbine Wheel. The Turbine was only available in Silver or Onyx Black color.

Size: 22x9.0" Front, 22x10.0" Rear
Offset: +35
PCD: 5x120
Center Bore: 64.1mm
Weight: 37.6 lbs Front, 40.4 lbs Rear
Lug Nut Spec: 21mm Hex, 14x1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$5,500Tire Spec: Pirelli Scorpion Zero All Season - 265/35ZR22 102Y Front, 285/35ZR22 106Y XL (Overall Diameter: 29.3" Front, 29.9" Rear / Revolutions Per Mile: 708 Front, 695 Rear)

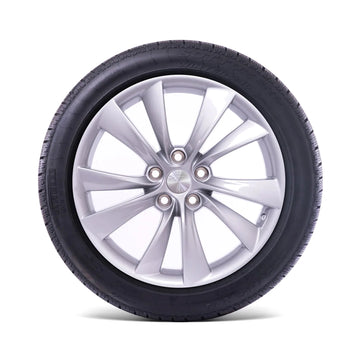

19" Tesla Model X Cyclone Wheel

The Cyclone Wheel was offered to Tesla Model X owners through the Tesla online store as a winter wheel and tire package for the price of $4,400. The Cyclone was only available in Silver color.

Size: 19x8.5"Offset: +35PCD: 5x120Center Bore: 64.1mmWeight: 29 lbsLug Nut Spec: 21mm Hex, 14x1.50 ThreadLug Nut Torque Spec: 129lb-ftTesla Option:$4,400Tire Spec: Pirelli Scorpion Winter - 265/50R19 110V XL (Overall Diameter: 29.7")

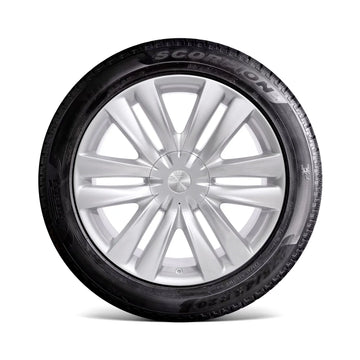

20" Tesla Model X Helix Wheel

The Helix Wheel was the an optional wheel upgrade for the Model X. The cost was $2,500.00 when ordering the Model X. The Helix was also offered as a wheel and tire package for $5,500.00 in the Tesla online store. The Helix was only available in Silver color.

Size: 20x9.0" Front, 20x10.0" Rear
Offset: +35
PCD: 5x120
Center Bore: 64.1mm
Weight: 34 lbs Front, 35 lbs Rear (Estimated)
Lug Nut Spec: 21mm Hex, 14x1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$2,500Tire Spec:Continental CrossContact LX Sport - 265/45R20 108V XL Front, 275/45ZR20 110V XL Rear (Overall Diameter: 29.4" Front, 29.7" Rear / Revolutions Per Mile: 707 Front, 698 Rear)

2021-2024

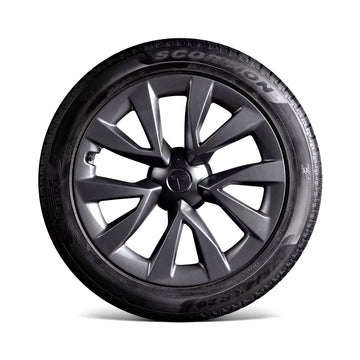

20" Tesla Model X Cyberstream Wheel

This was the wheel originally included as standard on all Long Range and Plaid Tesla Model X. This Tesla Model X Wheel included a center wheel cap that attaches to the center cap hole. The Tesla Model X Cyberstream Wheel was only available in gray color.

Size: 20x9.0" Front, 20x10" Rear
Offset: +40 Front, +35 Rear
PCD: 5x120
Center Bore: 64.1mm
Weight: 32 lbs Front, 33.2 lbs Rear (Estimated)
Lug Nut Spec: 21mm Hex, 14x1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:No ChargeTire Spec: Continental CrossContact LX Sport - 265/45R20 108V XL Front, 275/45ZR20 110V XL Rear (Overall Diameter: 29.4" Front, 29.7" Rear / Revolutions Per Mile: 707 Front, 698 Rear)

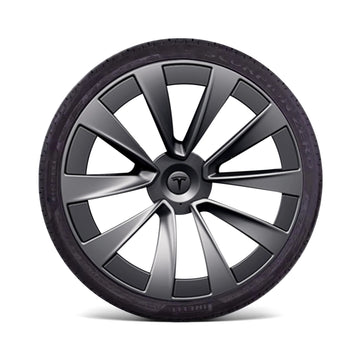

22" Tesla Model X Turbine Wheel

The Turbine Wheel was the only optional wheel upgrade for the Model X. It included a center wheel cap that attaches to the center cap hole. The Model X Turbine Wheel was the second iteration of the original Turbine Wheel released in 2021 as part of the 2021 Refresh. The Turbine was only available in Gunpowder (satin matte gray).

Size: 22x9.0" Front, 22x10.0" Rear
Offset: +35
PCD: 5x120
Center Bore: 64.1mm
Weight: 36.55 lbs Front, 41.60 lbs Rear
Lug Nut Spec: 21mm Hex, 14x1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$5,500Tire Spec: Pirelli Scorpion Zero All Season - 265/35ZR22 102Y Front, 285/35ZR22 106Y XL (Overall Diameter: 29.3" Front, 29.9" Rear / Revolutions Per Mile: 708 Front, 695 Rear)
