Tesla Model 3 Wheel Guide

18" Tesla Model 3 Aero Wheel (2017 - September 2020)
Originally included as standard on all Standard Range & Long Range Tesla Model 3. This Tesla Model 3 Wheel included a base split-5 wheel design with an Aero Wheel Cover attachment. All Tesla Model 3 Standard Range and Long Range delivered after October 2020 received a newly designed Aero Wheel and Aero Wheel Cover. The Tesla Model 3 Aero Wheel was only available in Aero Wheel color (metallic dark gray).
Size: 18X8.5"Offset: +40 PCD: 5X114.3Center Bore: 64.1mmWeight: 21.6 lbs (Without Aero Cover), 23 lbs (With Aero Cover)Lug Nut Spec: 21mm Hex, 14X1.50 ThreadLug Nut Torque Spec: 129lb-ftTesla Option:No ChargeTire Spec:Michelin Primacy MXM4 - 235/45R18 98W XL (Overall Diameter: 26.3" / Revolutions Per Mile: 790)

18" Tesla Model 3 Aero Wheel (October 2020 - October 2023)
This Aero Wheel was the second version of the Aero Wheel wheels originally included as standard on all Standard Range & Long Range Tesla Model 3. This Tesla Model 3 Wheel included a new base split-5 wheel design with a new Aero Wheel Cover attachment. All Tesla Model 3 Standard Range and Long Range delivered after October 2020 received a newly designed Aero Wheel and Aero Wheel Cover. The Tesla Model 3 Aero Wheel was only available in Aero Wheel color (metallic dark gray).
Size: 18X8.5"
Offset: +40
PCD: 5X114.3
Center Bore: 64.1mm
Weight: TBD (Without Aero Cover), TBD (With Aero Cover)
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:No chargeTire Spec:Michelin Primacy MXM4 - 235/45R18 98W XL (Overall Diameter: 26.3" / Revolutions Per Mile: 790)

19" Tesla Model 3 Sport Wheel (2017 - September 2020)
This Tesla Model 3 wheel was known as the "Stiletto". It was an optional wheel upgrade when ordering a Standard Range and Long Range Tesla Model 3 until October 2020. This was the largest Tesla Model 3 wheel that can be ordered with a Standard Range or Long Range. The Tesla Model 3 Sport Wheel was only available in silver.
Size: 19X8.5"
Offset: +40
PCD: 5X114.3
Center Bore: 64.1mm
Weight: 25 lbs
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$1,500 option when configuring your Tesla Model 3Tire Spec:Continental Procontact RX - 235/40R19 96W XL, Hankook Ventus S1evo3 - 235/40R19 96W XL (Overall Diameter: 26.4" / Revolutions Per Mile: 787)

19" Tesla Model 3 Sport Wheel (October 2020 - October 2023)
This Tesla Model 3 wheel was the second iteration of the Sport Wheel. It was an optional wheel upgrade when ordering a Standard Range and Long Range Tesla Model 3 starting from October 2020. This was the largest Tesla Model 3 wheel that can be ordered with a Standard Range or Long Range. The Tesla Model 3 Sport Wheel was only available in silver.
Size: 19X8.5"
Offset: +40
PCD: 5X114.3
Center Bore: 64.1mm
Weight: TBD
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$1,500 option when configuring your Tesla Model 3Tire Spec:Continental Procontact RX - 235/40R19 96W XL, Hankook Ventus S1evo3 - 235/40R19 96W XL (Overall Diameter: 26.4" / Revolutions Per Mile: 787)

19" Tesla Model 3 Power Sports 'Gemini' Wheel
This was the exclusive Model 3 19" Performance wheel option for the Chinese market, but was also available in the Tesla Shop as a Wheel & Winter Tire Package for the Model 3 Performance for the US market. Like the Tesla Model 3 Aero Wheel, this Tesla Model 3 19" Wheel included a base wheel with a dual-tone Aero Wheel Cover. The Tesla Model 3 Power Sports 'Gemini' Wheel was only available in silver.
Size: 19X8.5"
Offset: +40
PCD: 5X114.3
Center Bore: 64.1mm
Weight: TBD
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:No charge as a part of the Chinese market Model 3 Performance Package or $3,500 from Tesla Shop.Tire Spec:Hankook Ventus S1 evo3 - 235/40R19 96W XL or Pirelli Winter Sottozero 3 - 235/40-19 96V XL (Overall Diameter: 26.4" / Revolutions Per Mile: 787)

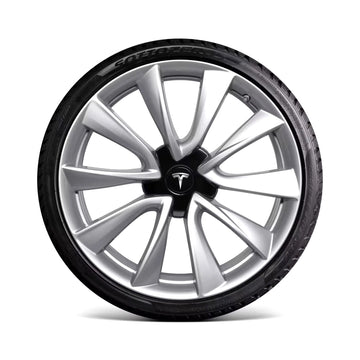

20" Tesla Model 3 Sport Wheel
This Sport Wheel was available for purchase effective March 20, 2018 from the Tesla Store as a Wheel & Tire Package. It was also included in the $5,000 Performance Package Option on the Performance Tesla Model 3 and eventually became the only wheel option available for the Performance Tesla Model 3. The 20" Sport Wheel was available in silver until October 2019. The 20 inch Sport Wheel was delivered in Gunpowder (satin matte gray) from October 2019 until September 2020.
Size: 20X8.5"
Offset: +35
PCD: 5X114.3
Center Bore: 64.1mm
Weight: 28.75 lbs
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$4000 direct from Tesla or part of the Tesla Model 3 Performance PackageTire Spec:Michelin Pilot Sport 4S - 235/35ZR20 92Y (Overall Diameter: 26.5" / Revolutions Per Mile: 786)

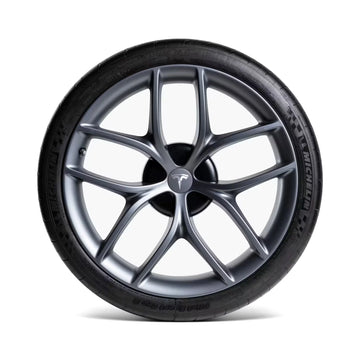

20" Tesla Model 3 Zero G Wheel
The Zero G Wheel was available for purchase effective March 2, 2020 from the Tesla Store as a Wheel & Tire Package as part of the Tesla Model 3 Performance Track Package. Each wheel included a set of lug nut cover attachments in black plastic. The Tesla Model 3 20 inch Zero G Wheel was the first wheel in 20x9" offered by Tesla. The Zero G was only available in Gunpowder (satin matte gray).
Size: 20X9.0"
Offset: +34
PCD: 5X114.3
Center Bore: 64.1mm
Weight: TBD
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:$5,500 direct from Tesla as Part of the Tesla Model 3 Track Package
Tire Spec:Michelin Pilot Sport Cup 2 245/35ZR20 95Y XL (Overall Diameter: 26.75" / Revolutions Per Mile: 754)

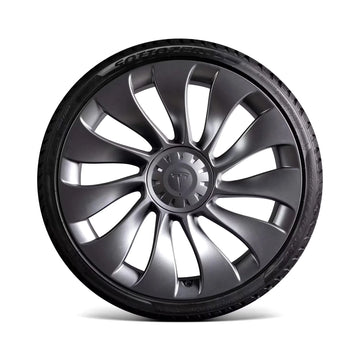

20" Tesla Model 3 Uberturbine Wheel
The Uberturbine Wheel was the standard wheel equipped on the Model 3 Performance delivered effective October 2020. It included a center wheel cap that attaches to the center cap hole. This was the second 20x9" Tesla offered for the Tesla Model 3. The Uberturbine was only available in Gunpowder (satin matte gray).
Size: 20X9.0"
Offset: +34
PCD: 5X114.3
Center Bore: 64.1mm
Weight: 32 lbs
Lug Nut Spec: 21mm Hex, 14X1.50 Thread
Lug Nut Torque Spec: 129lb-ft
Tesla Option:Part of the Tesla Model 3 Performance PackageTire Spec: Pirelli P Zero - 235/35ZR20 92Y (Overall Diameter: 26.5" / Revolutions Per Mile: 786)
