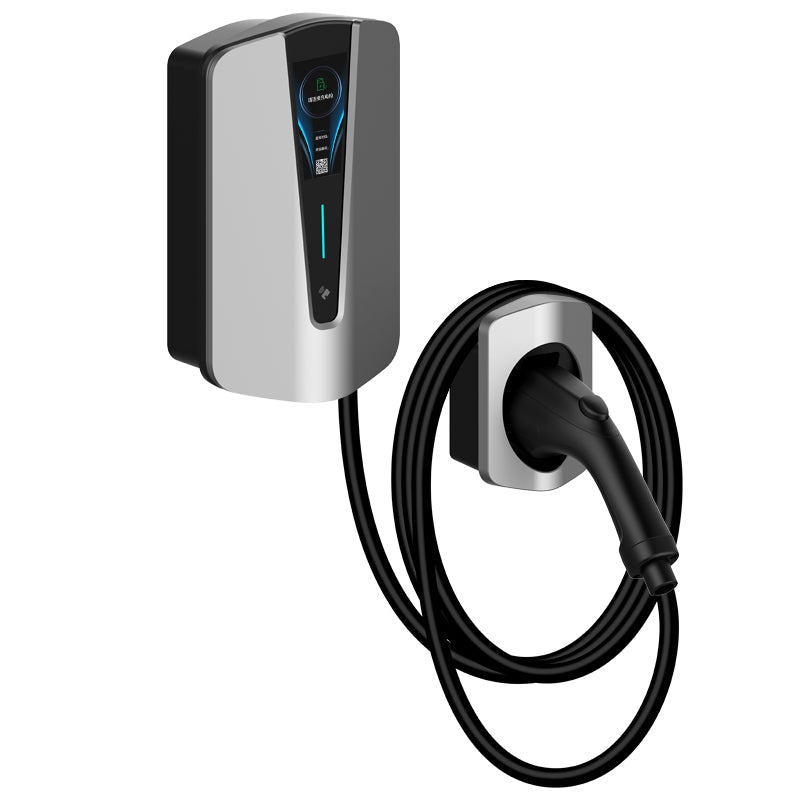

TESERY Tesla Level 2 EV Home Charging Station |48A|240V|NEMA 14-50/Hardwire|25ft

This charging station is designed specifically for Tesla vehicles, featuring 48A of power and 240V of voltage, as well as a NEMA 14-50/Hardwire connector and 25ft cable. It's the efficient way to keep your Tesla charged and ready to go.

Key Benefits

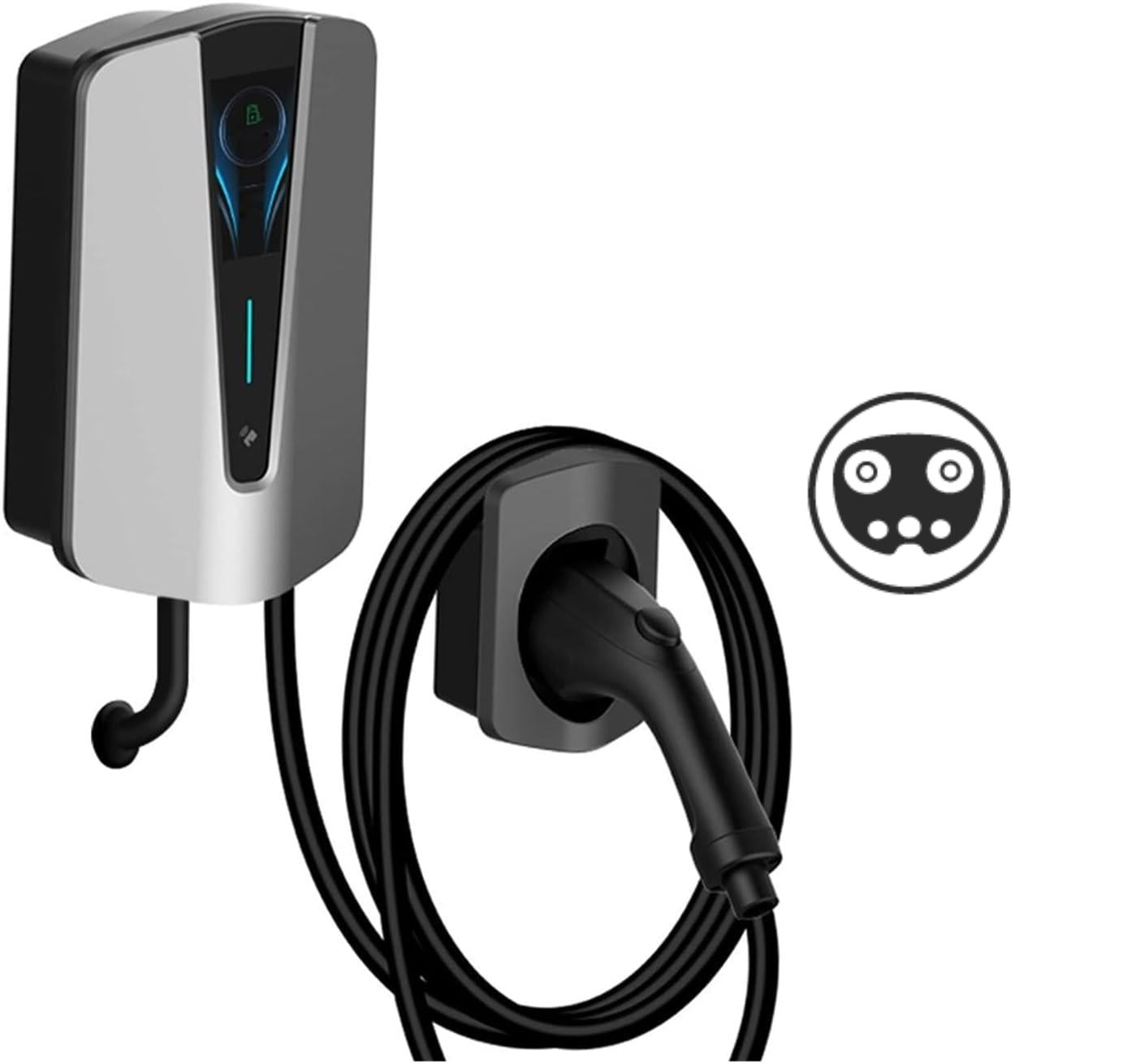

【J1772 Charger】: Connects to a NEMA 14-50 outlet or hardwired setup, providing 48 amps of power for Level 2 charging - Includes 25 ft. of cord to make charging easy and accessible.
【Faster Level 2 Charger】: Charges up to 46 mph at 11.52 kW/h, and quickly charges any EV overnight or during your work hours.

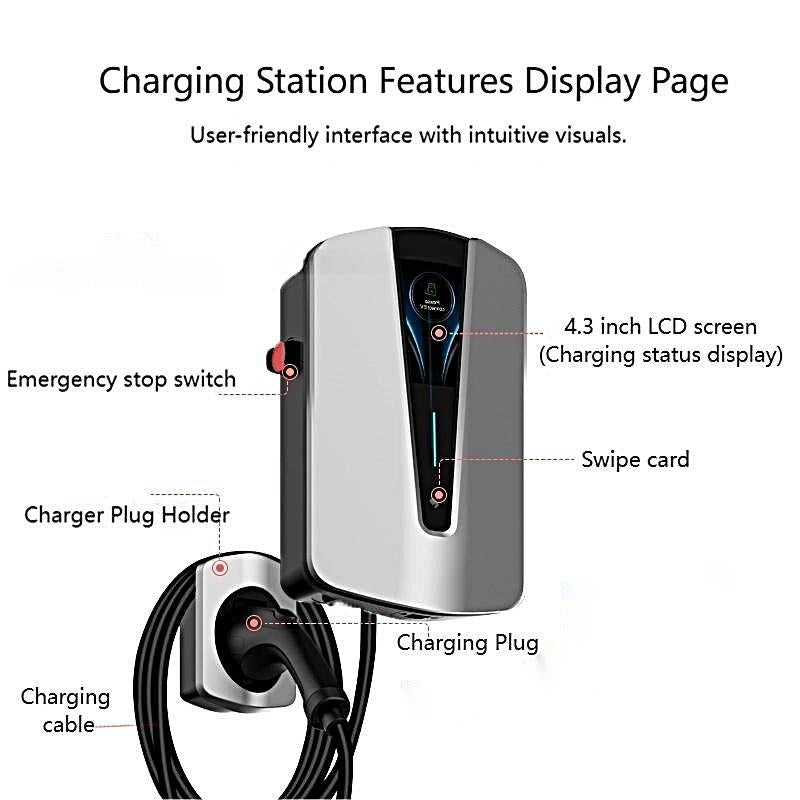

【Vibrant LED displays】: Bright, easy-to-read LED screen clearly displays your charging status, including real-time current, charging time, rated current, real-time voltage, grounding indicator, state of charge, and temperature

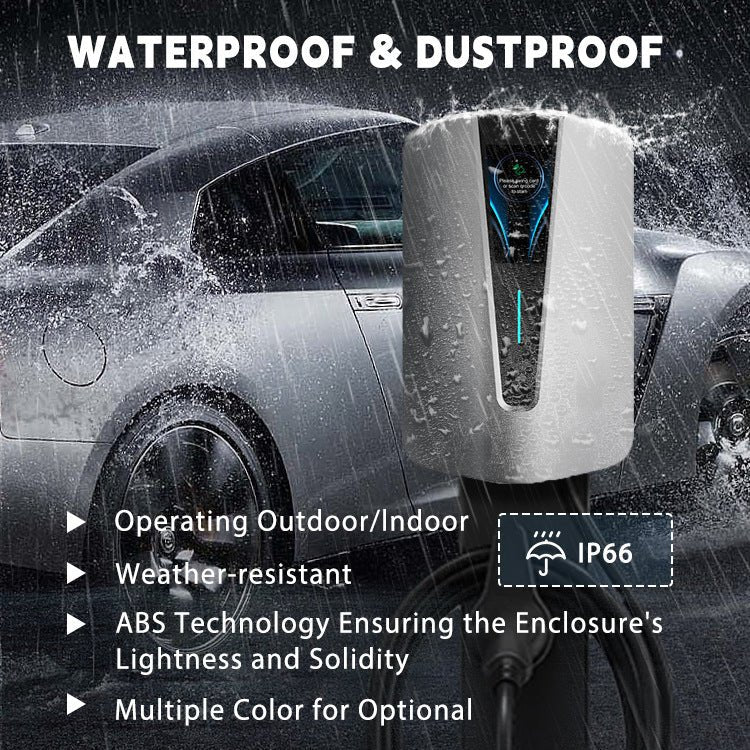

【Weatherproof】: This NEMA charger has an IP66 weatherproof rating and is designed for maximum strength and durability.
【Activation Method】: The Tesery home charger has 4 activation modes: ①Plug and Charge; ②Plug and Charge + App (Bluetooth + WiFi); ③Plug in Card; ④Plug in Card + App (Bluetooth + WiFi)

Specifications

Material: PC
Power：Applicable AC power
Rated voltage: 240V
Power: 11.52KW/h
Plugging and unplugging times: More than 10000
Home version dump line length: 1ft
Length of gun base/line: 25ft
Current: 48A
Working Temperature：-30℃~+50℃

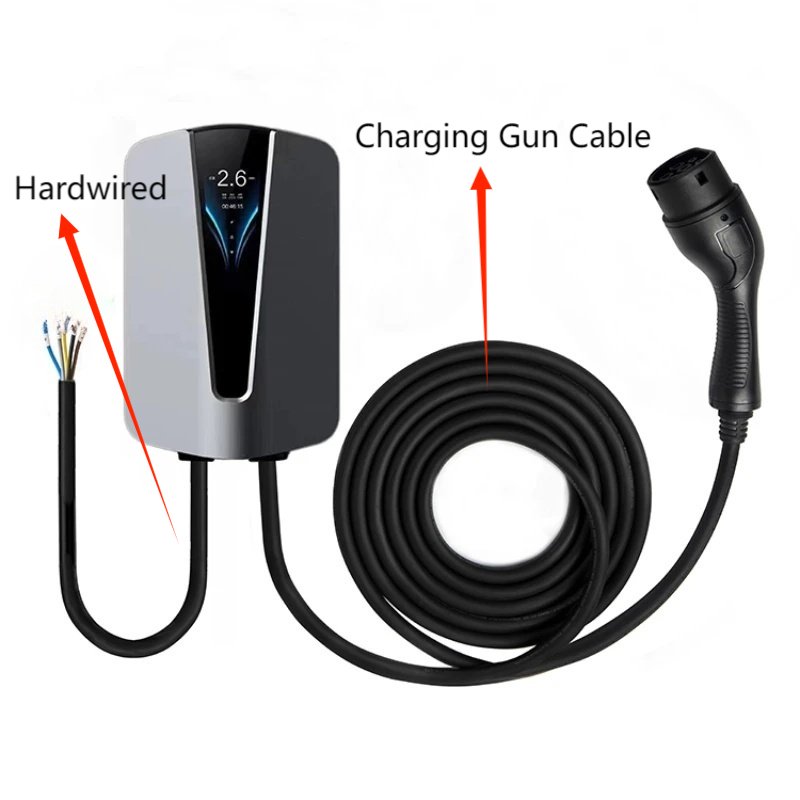

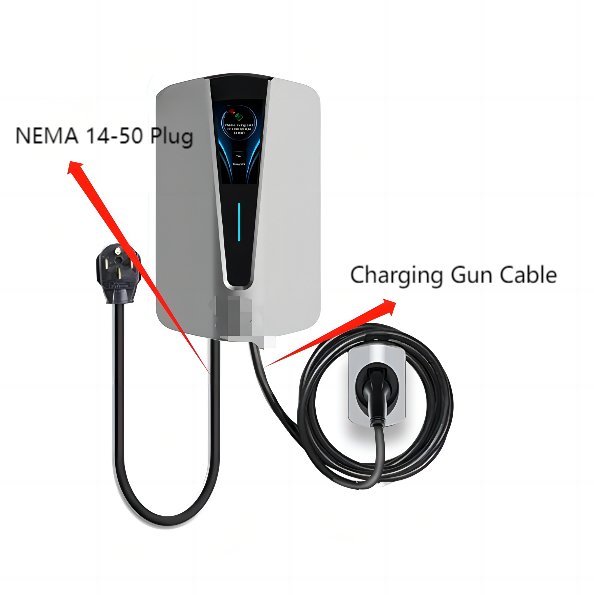

Connection Methods: NEMA 14-50 Plug/Hardwire
Protection grade: IP66
Compatibility: Level 2 charging stations

Accessory Indicator Chart：

Installation Methods：

Wall mounting：No wall near the parking space or your own yard can choose the column method
Wall-mounted installation：Wall mounting is available for parking spaces near walls.

Notes：

If you want to make it easier to charge your Tesla or J1772 EV without any hindrance, then you can see the following tips:

Tesla owners: J1772 to tesla charger adapter
J1772 EV owners: Tesla to J1772 charger adapter

Shipping

We will make every effort to ensure that your item reaches you intact and ready to install.

If you like our TESERY Level 2 Tesla Home Charging Station |T11KWh|48A | 240V | NEMA 14-50 , add them to your cart and buy them now. If your order is $149 or more, we'll ship it free to any city in the world.

If the item is damaged or not fit for purpose, it will be unconditionally refunded or replaced 30 days from the date of receipt.

If you have any questions about TESERY Level 2 Tesla Home Charging Station |T11KWh|48A | 240V | NEMA 14-50 , you can contact our online customer service.

Datasheet	Model	48A (us/ca)
Input	Power Supply	L+N+PE
	Rated voltage	AC 240V
	Rated current	48A
	Frequency	50/60Hz
Output	Output voltage	AC 240V
	Output current	48A
	Rated power	11.52KW
User interface	Cable length	25ft
	Outer case	PC9010
	LED indicator	Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
	Emergency stop	include
Start-up mode	Plug-and-Play	Yes
Screen	4.3-inch	Yes
Network	Bluetooth/WiFi	Yes
Security	RCD	A +ccid20
	Ingress Protection	IP65
	Surge Protection	IK10
	Electrical Protection	Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel
	Warranty	15 months
	Cooling mode	Natural cooling
Environment	Installation	Wall-mount/Pole-mount
	Working Temperature	-30℃~+50℃
	Storage temperature	-40℃~+80℃
	Operating humidity	5%~95% no moisture condensation or frost
	Working Height	<2000M
Specifications	Product Dimension	291810.5cm
	Package Dimension	472425.5cm
	Net Weight	4.2KG
	Gross Weight	5.2KG
Packing list	Charging pile	1Pcs
	Instructions	1Pcs
	Cable	1Pcs
	Base	Pcs
	Screw (for installation)	Pcs
	Outer packaging	Carton
Other	Efficiency	≥98
	Insulation resistance	≥10MΩ
	Power of control module	≤7W
	Terminal	inlcude
